Pneumatically driven flanged soft-sealed butterfly valve uses and features
This product consists of a rubber-sealed butterfly valve and a carbon steel or stainless steel valve plate and valve stem. It is suitable for regulating flow and intercepting medium in water supply and drainage and gas pipelines with a temperature of ≤120°C, such as food, medicine, chemical industry, petroleum, electricity, textile, papermaking, etc. Its main features are:
1. Novel and reasonable design, unique structure, light weight, fast opening and closing.
2. Small operating torque, easy operation, labor-saving and dexterous.
3. It can be installed in any position and is easy to maintain.
4. The seal can be replaced, and the sealing performance is reliable to achieve two-way sealing and zero leakage.
5. The sealing material is resistant to aging, corrosion, and has a long service life.
Adopting standard
Design standard: GB/T2238-1989
Flange connection size: GB/T9113.1-2000; GB/T9115.1-2000; JB78
Structural length: GB/T12221-1989
Pressure test: GB/T13927-1992; JB/T9092-1999
Actuator
Adopting new series GT pneumatic actuator, there are double-acting and single-acting (spring return), gear transmission, safe and reliable; large-diameter valves adopt series AW pneumatic actuator fork transmission, reasonable structure, large output torque, double-acting and single-acting.
1. Gear-type double piston, large output torque, small size.
2. The cylinder is made of aluminum, light weight and beautiful appearance.
3. Manual operating mechanism can be installed at the top and bottom.
4. Rack connection can adjust the opening angle and rated flow.
5. The actuator can be optionally equipped with electrical signal feedback indication and various accessories to realize automatic operation.
6. IS05211 standard connection provides convenience for product installation and replacement.
7. The adjustable screws at both ends can make the standard product have an adjustable range of ±4° at 0° and 90°. Ensure the synchronization accuracy with the valve.
Accessory options
The following accessories can be selected according to different controls and requirements:
Cut-off accessories: single solenoid valve, double solenoid valve, limit switch feedback device.
Adjustment accessories: electrical positioner, pneumatic positioner, electrical converter.
Air source processing accessories: air filter pressure reducing valve, air source processing triplex.
Manual mechanism: HVSD manual mechanism

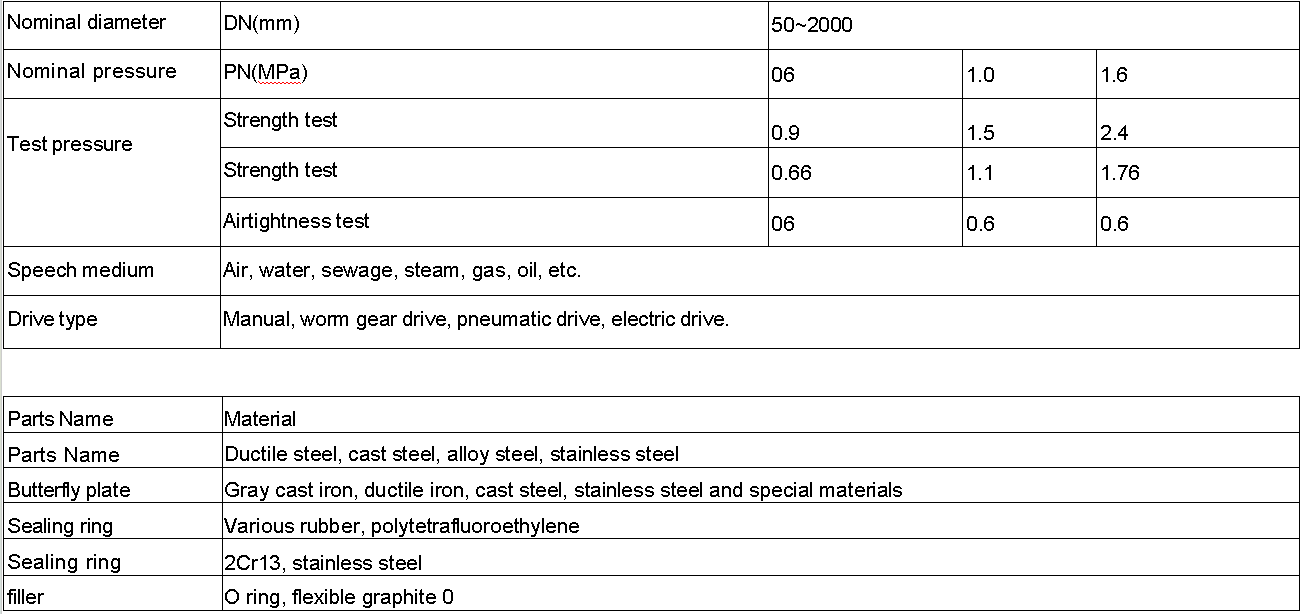

Main technical parameters

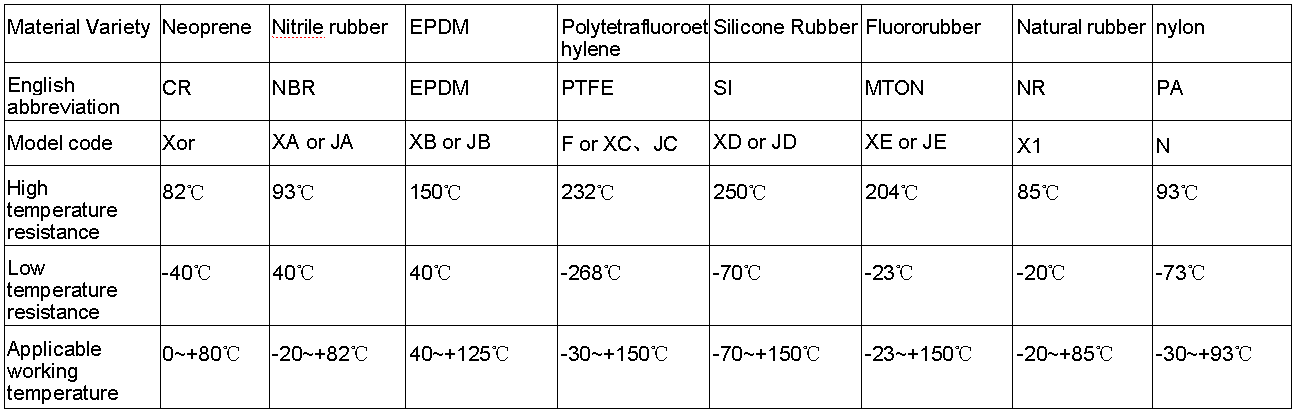

Butterfly valve sealing material selection and applicable temperature
Dimensions
Ordering instructions
Please fill in the "Specification" or indicate the following when ordering:
1. If the model has not been selected before ordering, please provide us with your usage parameters: 1. Nominal diameter, 2. Fluid properties (including nominal pressure, temperature, viscosity or acidity and alkalinity), 3. Double acting or single acting (please indicate air-open or air-closed for single acting), 4. Valve body and valve core materials, 5. Whether it comes with accessories (accessory standards: solenoid valve, travel switch, air filter pressure reducer, handwheel mechanism, etc.), and indicate the accessory model. So that we can ｓｅｌｅｃｔ the right model for you.
2. If the product model of our company has been selected by the design unit, please order directly from our sales department according to the model;
3. When the occasion of use is very important or the pipeline is relatively complex, please try to provide design drawings and detailed parameters, and our experts will review and check for you.
