Check valve: a safety guard that protects the flow of fluids
In modern industrial and civil fluid control systems, check valves, as a key component, have become an important barrier to prevent medium backflow and ensure stable system operation with their unique structural characteristics and excellent performance. This article will deeply analyze the structural characteristics of check valves and show their wide application and irreplaceability in various fields.

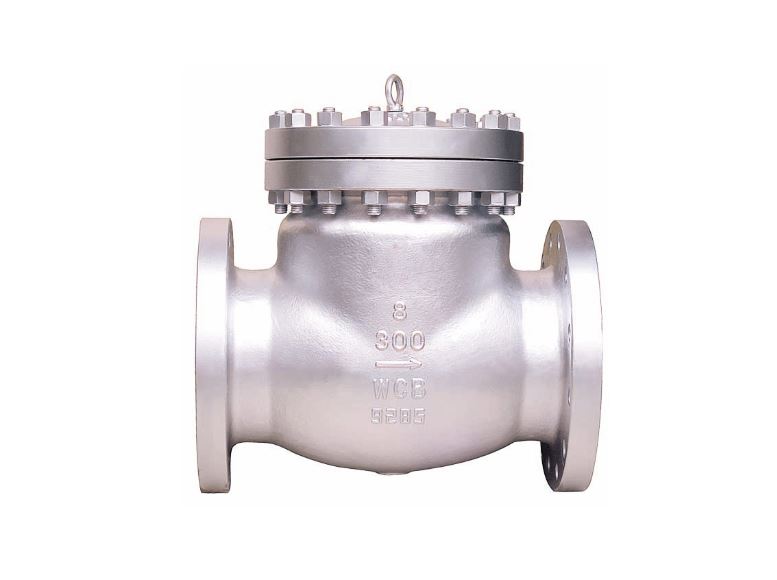

Check valve
The structural secret of check valves
Check valves, also known as one-way valves or non-return valves, are designed to automatically open or close the valve disc by the flow force of the medium itself, thereby preventing the medium from flowing back. According to different structural forms, check valves are mainly divided into three categories: swing type, lifting type and butterfly type.
Swing check valve: The valve disc of this type of check valve is disc-shaped and rotates around the rotating shaft of the valve seat channel through a hinge mechanism. When the medium flows forward, the valve disc is pushed open and the fluid passes almost unimpeded; when the medium tries to flow back, the valve disc quickly closes under the action of fluid pressure and deadweight, cutting off the backflow path. The swing check valve has low flow resistance and is particularly suitable for large-caliber occasions with low flow rate and infrequent flow changes, but its sealing performance is relatively weak.
Lift check valve: The valve disc of the lift check valve slides along the vertical center line of the valve body. When the medium flows forward, the valve disc is lifted by the force of the medium to allow the fluid to pass; once the medium stops flowing or flows back, the valve disc quickly falls back to the valve seat under the action of the reset mechanism (such as spring or gravity) to prevent the medium from flowing back. The lift check valve has a compact structure and good sealing performance, but it can usually only be installed on horizontal pipes.
Butterfly check valve: The valve disc of the butterfly check valve rotates around the pin shaft in the valve seat. It has a simple structure, but relatively poor sealing performance, and is usually also installed on horizontal pipes. The valve disc design of the butterfly check valve is diverse, including single-flap, double-flap and multi-flap to meet the needs of different calibers and working conditions.
Application advantages of check valves
Safety and reliability: The automatic opening and closing function of the check valve effectively prevents the backflow of the medium, avoids accidents and equipment damage caused by backflow, and improves the safety and reliability of the system.
Energy saving and environmental protection: The fluid resistance of the check valve is small, and the pressure ｄｒｏｐ through the valve is relatively low, which helps to reduce energy consumption and achieve the goal of energy saving and environmental protection.
Easy maintenance: The structure of the check valve is relatively simple, with few parts, and it is convenient and quick to install, debug and maintain, reducing maintenance costs and time costs.
Strong adaptability: Different types of check valves are suitable for different working conditions and media, including water, oil, gas, etc., meeting the needs of various fluid control systems.
Conclusion
As an indispensable and important component in the fluid control system, the check valve provides a strong guarantee for the safe flow of the medium with its unique structural characteristics and excellent performance. With the continuous advancement of industrial technology and the continuous expansion of application fields, check valves will continue to play their important role and contribute to the safe production and efficient operation of various industries.
