Floating cast steel ball valve product use
Floating ball valves are used on various pipelines of Class150~Class1500, PN16~PN100, JIS10K~JIS20K to cut off or connect the medium in the pipeline. Different materials are selected, which can be used for water, steam, oil, liquefied gas, natural gas, coal gas, nitric acid, acetic acid, oxidizing medium, urea and other media
Floating cast steel ball valve product features
1. Among various valves, the ball valve has a small flow resistance. When the full-diameter ball valve is opened, the ball channel, valve body channel and connecting pipe diameter are equal and form a diameter, and the medium can flow through almost without loss
2. The ball valve can be fully closed and fully opened by rotating 90°, and it can be opened and closed quickly. Compared with gate valves and stop valves of the same specifications, ball valves are small in size and light in weight, which is convenient for pipeline installation

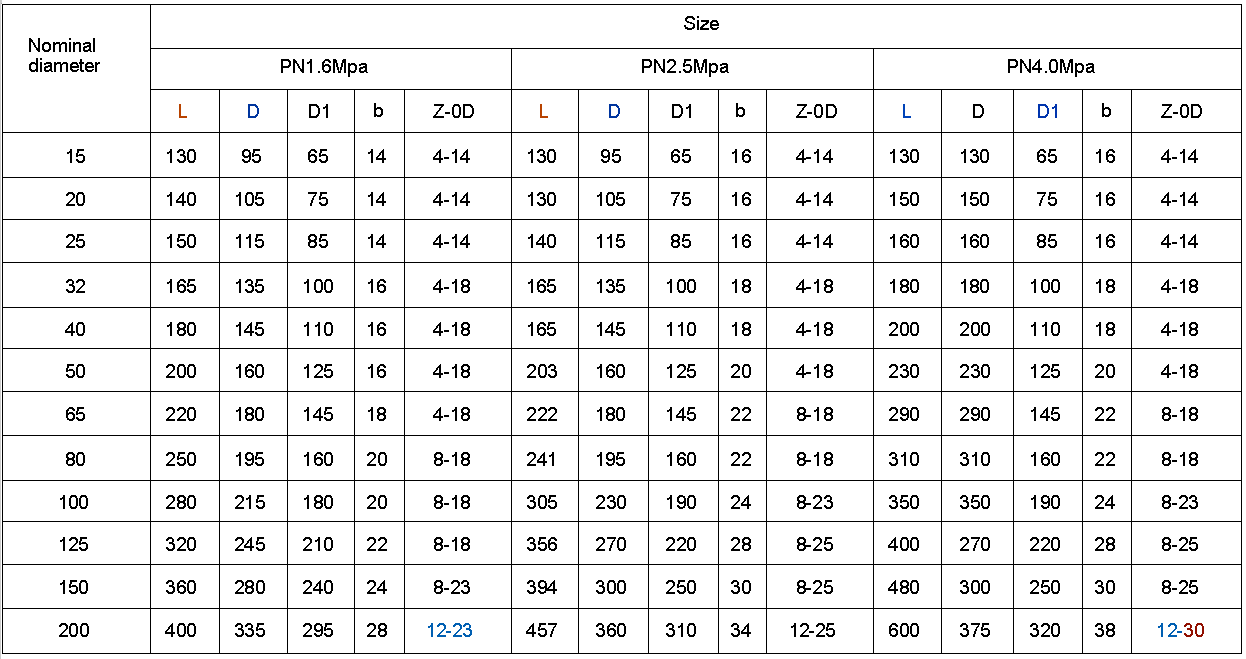

Performance parameters of floating cast steel ball valve
