1. Detailed information of the three-piece ball valve:
Product model: 3PCQ11F-64P
Product name: three-piece ball valve
Product features: Application specification Nominal pressure: 1.6-6.4MPa Applicable temperature range: -20~232℃~350℃ Applicable media: water, oil, gas and some corrosive liquids (W.O.G) Thread type: G·NPT.BSPT.BSP.DIN259/2999.

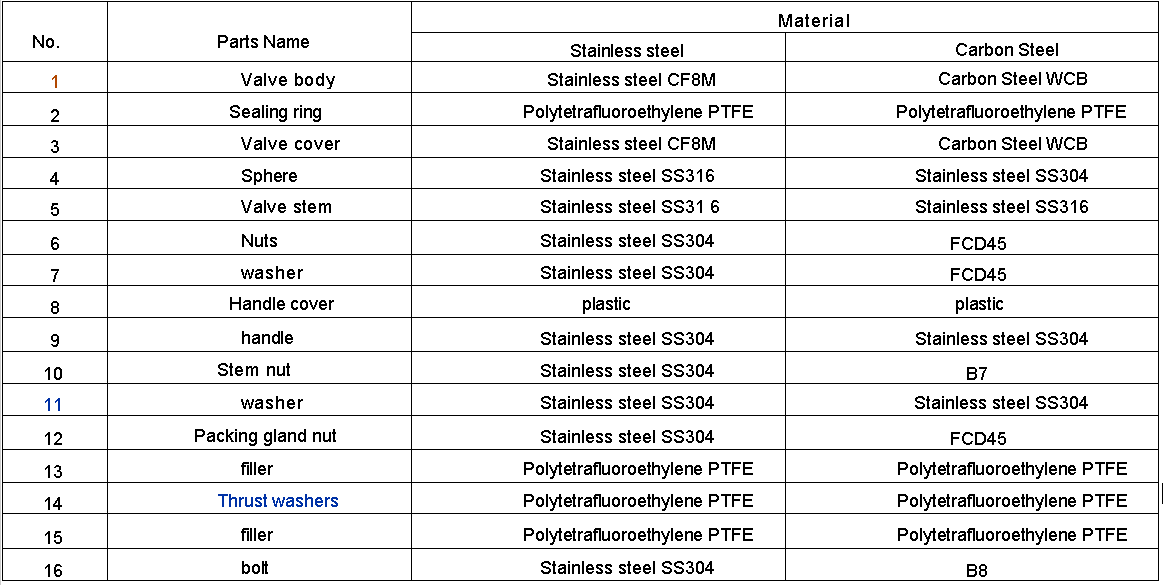

2. Main parts materials:

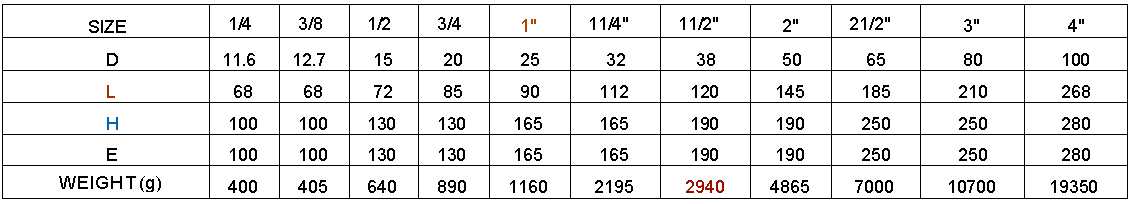

3. Main dimensions of three-piece ball valve:
Ordering instructions:
1. ① Product name and model of three-piece internal thread ball valve ② Diameter of three-piece internal thread ball valve ③ Whether the three-piece internal thread ball valve comes with accessories so that we can ｓｅｌｅｃｔ the right model for you.
2. If the company's stainless steel three-piece ball valve model has been selected by the design unit, please order directly from our sales department according to the three-piece internal thread ball valve model.
3. When the application is very important or the environment is complex, please provide design drawings and detailed parameters as much as possible, and our experts will review and check them for you.
