Electric flange soft seal butterfly valve D941X product overview
The electric flange soft seal centerline clamp butterfly valve developed by our company, the double eccentric flange butterfly valve has a compact structure, easy 90° rotary switch, reliable sealing, and long service life. It is widely used in water supply and drainage in water plants, power plants, steel plants, papermaking, chemical industry, catering and other systems for regulation and cutoff.
Features of electric flange soft seal butterfly valve D941X
1. This valve adopts a double eccentric structure, which has a sealing function that becomes tighter and tighter as it is closed, and has reliable sealing performance.
2. The sealing auxiliary material is a pair of stainless steel and nitrile oil-resistant rubber, which has a long service life.
3. The rubber sealing ring can be located on the valve body or on the butterfly plate, which can be used for media with different characteristics for users to choose.
4. The butterfly plate adopts a frame structure with high strength, large flow area and small flow resistance.
5. The overall paint can effectively prevent rust and can be used for different media as long as the sealing valve seat sealing material is replaced.
6. This valve has a two-way sealing function. It is not controlled by the flow direction of the medium during installation, nor is it affected by the spatial position. It can be installed in any direction.
7. This valve has a unique structure, flexible operation, labor-saving and convenient.

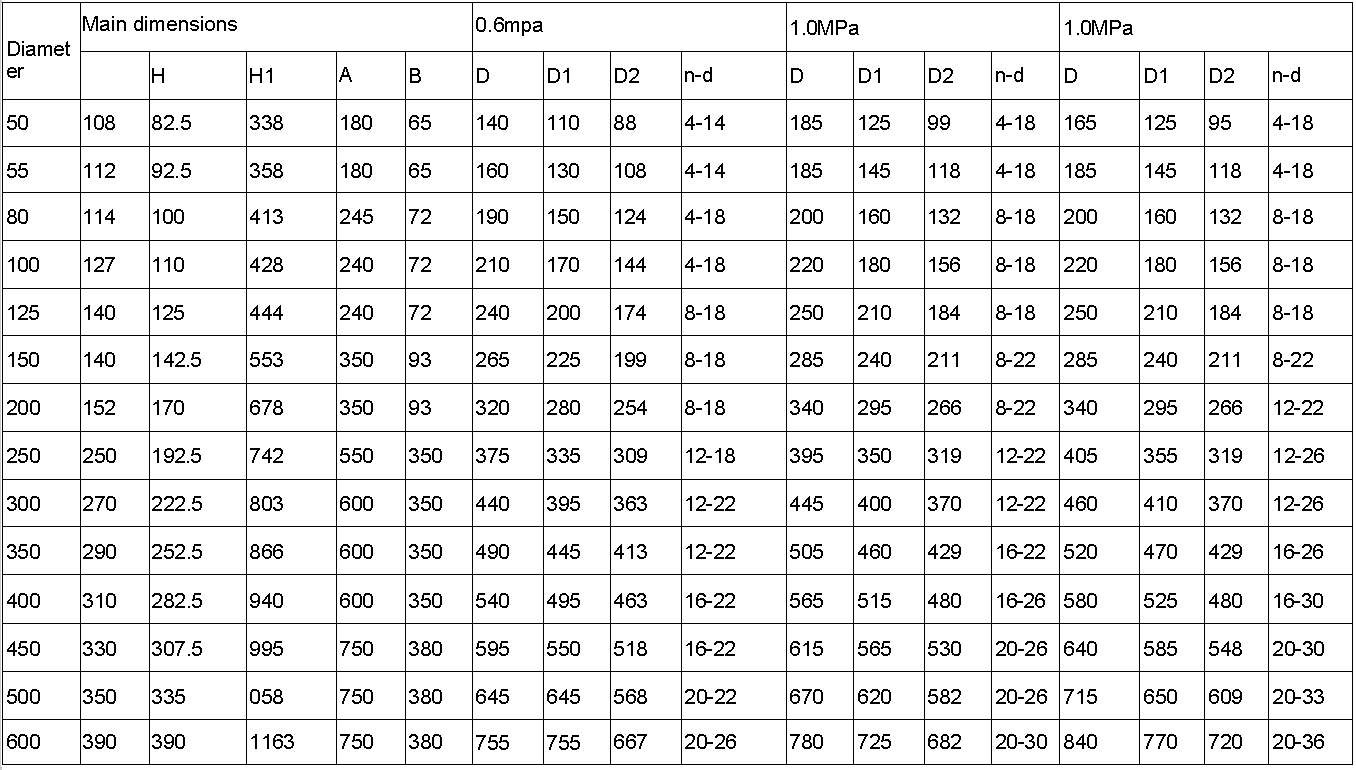

Electric flange soft seal butterfly valve D941X implementation standard

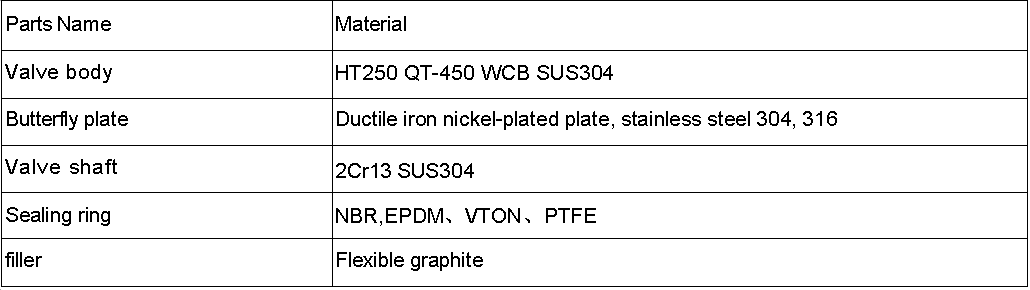

Main component materials of electric flange soft seal butterfly valve D941X
